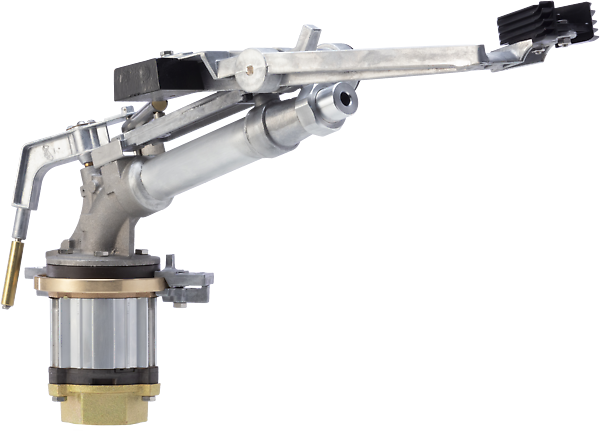

Nelson Big Gun Sprinkler - SR75 - Part Circle (24° Trajectory) 2'' FPT

Name: Nelson Big Gun Sprinkler - SR75 - Part Circle (24° Trajectory) 2'' FPT
Brand: Nelson
SKU: 10229-124
Price: 1061.52 USD
Availability: InStock

Nelson | SKU: 10229-124

$1,061⁵² ~~$1,379⁷⁰~~

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Part Circle SR75 Big Gun Sprinkler (24° Trajectory) with a 2'' FNPT connection. Radius of 75' - 140' depending on nozzle purchased. (Nozzles must be purchased separately)

Part-circle operation for use as a pivot end gun or in solid set edge applications where pressure and/or flow is limited.

A solid performer for smaller systems with low flow or pressure, the 75 Series Big Gun packs the same rugged construction and features into a compact design. It is perfect for portable, solid set, and permanent set systems in agricultural irrigation, irregular field shapes, sports fields, and more.

Features

Trajectory: 24°
Connections: 2'' Female Pipe Threaded
Nozzles: Taper Ring (Sold Separately: Click Here to Choose Size)

No Nozzle is included. Must be purchased Separately. Click above for link to nozzles product page or search SR75 Taper Ring Nozzles.

The interchangeable Taper Ring Nozzle makes customizing the flow rate a breeze. While it may be the smallest member of the Big Gun^® sprinkler family, it uses the same heavy duty lower bearing and rugged construction of the larger sprinklers. It can also be paired with the QC100 for a portable, quick-coupling system (Sold Separately; Please email contact@cheapsprinklers.com for availability).

Performance (Depending on Nozzle Used)

Flow: 25-160 gpm (6-36 m³/hr)
Pressure: 25-80 psi (1.75-5.5 bar)
Radius: 75-140 ft (23-43 m)
Trajectory: 24°
