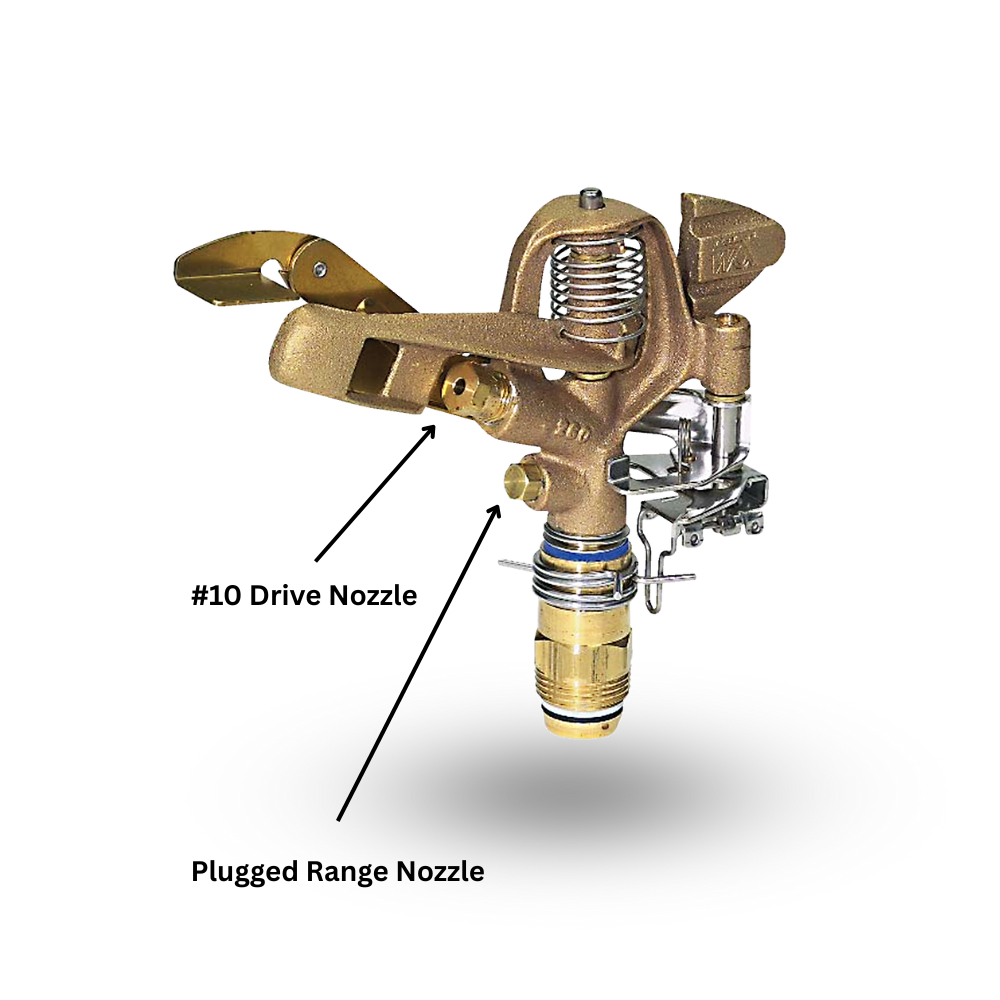

Buckner - 261SDX10PG - 3/4'' Full/Part Circle Brass Impact Sprinkler MPT
Buckner - 261SDX10PG - 3/4'' Full/Part Circle Brass Impact Sprinkler MPT is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Buckner 261SDX10PG - 3/4'' Full/Part Circle MPT Brass Impact - 25° trajectory - #10 Drive Nozzle with Plugged Filler Nozzle
Designed for use in large landscape/turf irrigation, dust control, nurseries and general purpose use.
Specifications
- 3/4″ Male NPT Inlet (National Pipe Thread)
- #10 - 5/32'' Drive Nozzle Size with Filler Nozzle Plug Pre-Installed (Other nozzle sizes available but not stocked, please email contact@cheapsprinklers.com to order with different range nozzles)
- Drive Nozzle Thread: 1/4” - 18 NPT
- Filler Nozzle Thread: 3/8” - 24 UNF
Operating Ranges
- Pressure: 30 to 60 PSI
- Flow: 4.35 to 6.53 GPM
- Throw Radius: 41 to 46 FT
- Trajectory: 23°
- Rotation: 20° to 340° or Full Circle
Performance w/ Single #10 Nozzle and Filler Nozzle Plug
Features & Benefits
- Solid brass construction
- Stainless steel springs, spindle, and fulcrum pin
- “Sure Seal®” sand load bearing assembly
- Anti-backsplash arm
- Adjustable diffuser pin
- Adjustable deflector plate
- Chemical-resistant bearing seals promote longer lifespan
- Stream straightening vane standard
- 25° angle of trajectory
- Dual or Single nozzle options (please email contact@cheapsprinklers.com for dual or other nozzle options)
Additional Information
Other Throw Radius Nozzle options (41'-50') are available for this product with dual nozzle options. If you need another nozzle besides the #10 Single Nozzle with Plug pre-installed option, then please email contact@cheapsprinklers.com for a quote and availability.
-
Box QuantityN/A
